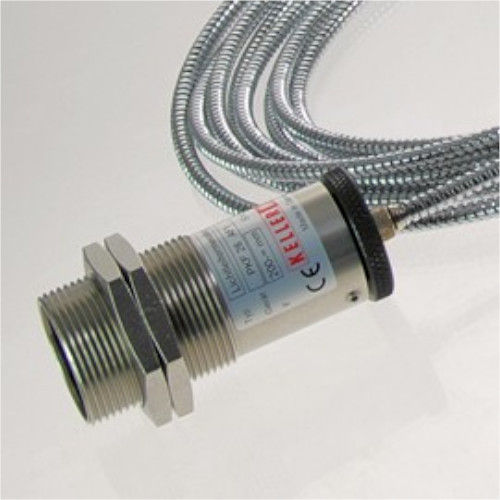

In the CellaTemp® PKF 36, the electronics and measuring head are separate. The infrared radiation is transmitted to the electronics via an optical fibre. The measuring head can be used in ambient temperatures up to 250 °C without cooling. This version can also be used in cramped mounting conditions or high electromagnetic fields. The length of the fibre optics can be up to 50 m.

Pyrometer CellaTemp PKF 36

Measuring range 550 to 2500 °C

Fibre-optic cable version up to 50 m length possible

Switching output universally configurable

High optical resolution due to precision lenses

IO-Link interface

All parameters can be set via push-button on the sensor or via interface from the system controller

Test function can be triggered by push-button or control signal

Very simple mounting via M30 central thread

Large and bright LED display

Version	CellaTemp PKF 36 AF 1
Measuring range	550 - 2500 °C
Focal distance	0,2 m - ∞
Shape of the measurement area	round
Distance ratio	190 : 1
Measuring head	PA 41.01
Measuring principle	one-colour
Sighting option	Laser pilot light
